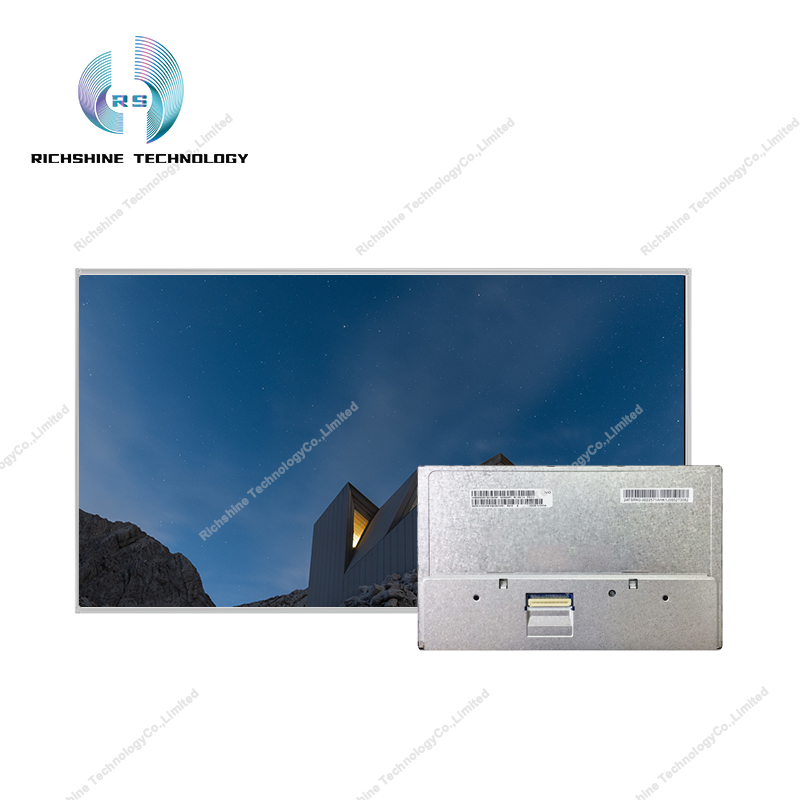

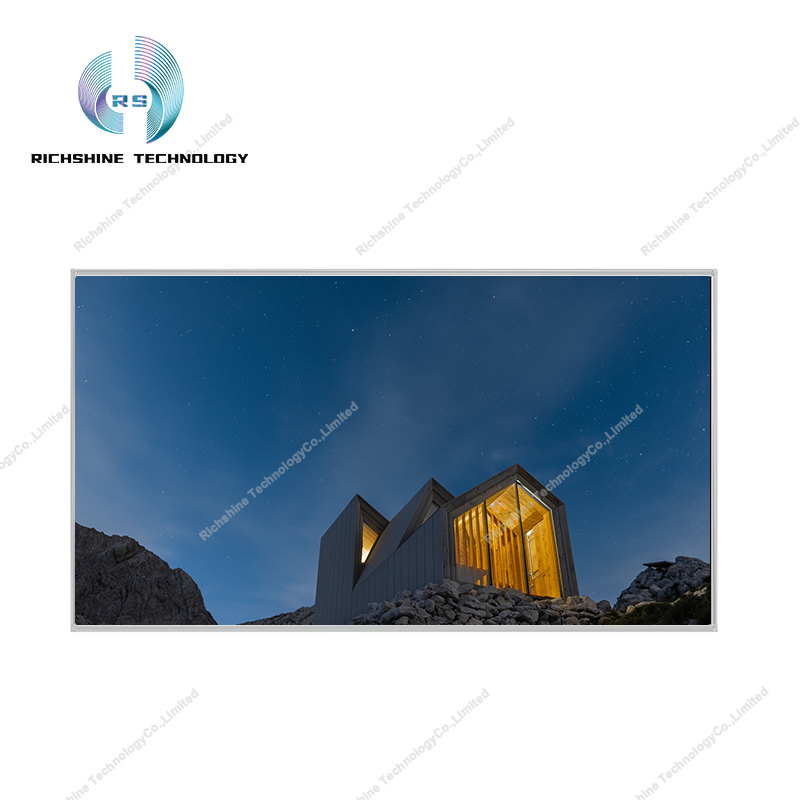

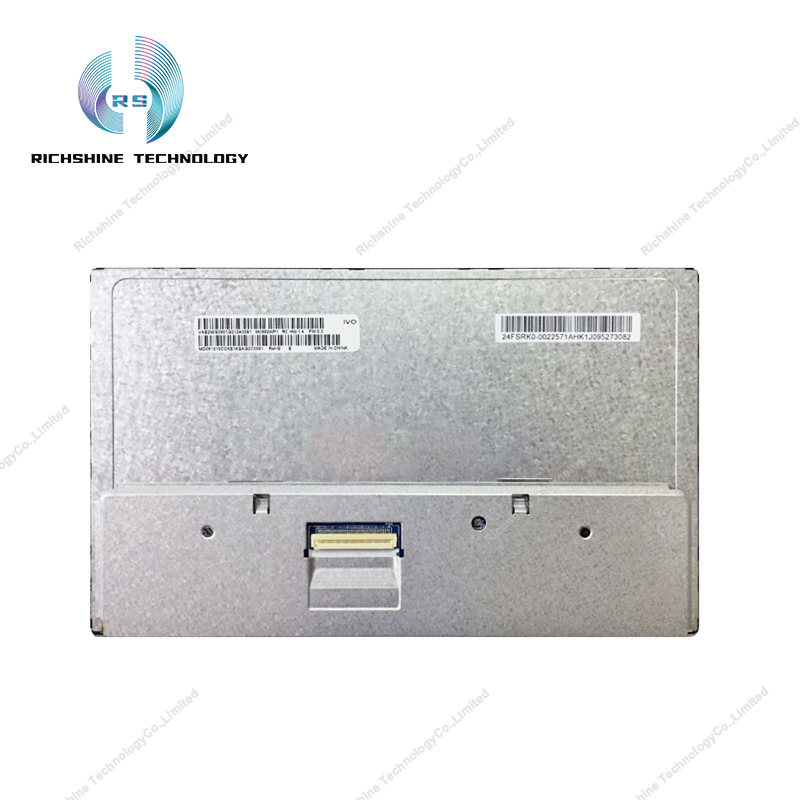

M090SWP1 R0
Panel structure :LCM
Panel Type :TFT-LCD
Touch :No
Application :Industrial
Panel size :9
Resolution :800*480
Vertical Frequency :60Hz
Flip scan :YES
Brightness :300cd/m²
Contrast Ratio :500:1
Response Time :10/15
Sunlight Readable :No
View Angle :70/70/50/70
Color Space :NTSC 50%
Backlight Type :WLED
Backlight Position :Side entry light source
Signal voltage :3.3V
OP Temp. Low :-20 °C
High :70 °C
Backlight Life Time :20,000

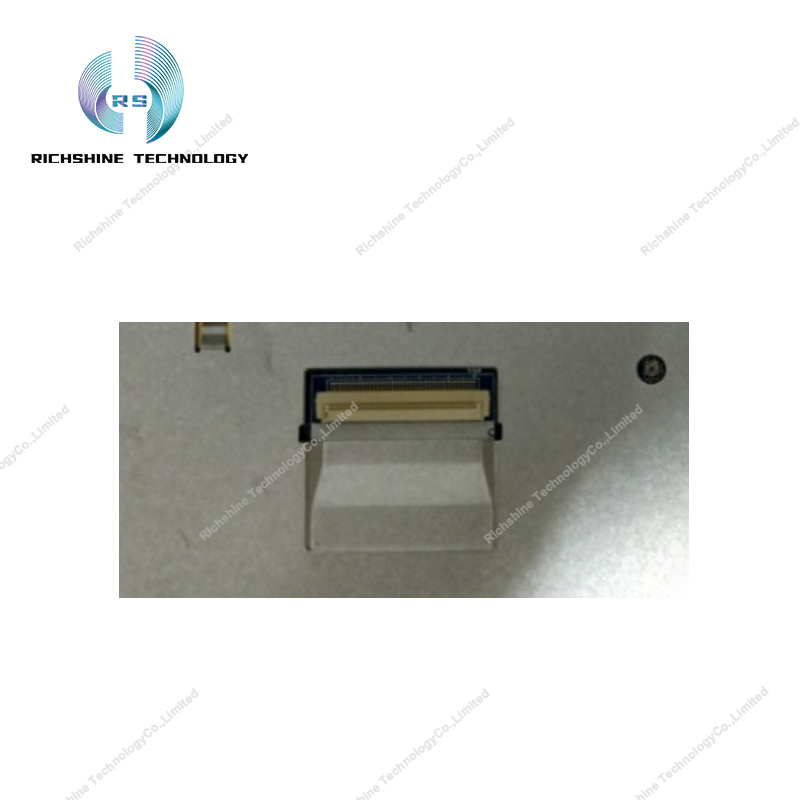

Interface Type :Parallel RGB
Display Color :16.7M
Horizontal :211.1
Vertical :128.4
Depth :6.6/7.1
Backlight voltage :5.0/12.0/21.0V
- Model:
- M090SWP1 R0
- Weight:
- 255.000 g
Related Model
Model | Version | Title | |
---|---|---|---|
M090SWP1 R0 | Rev.04 | M090SWP1 R0 9.0 inch WVGA TN |
- Product Category :
- Laptop panel
- Panel structure:
- LCM
- Panel Type:
- TFT-LCD
- Touch:
- No
- Application:
- Industrial
- Panel size:
- 9
- Resolution:
- 800*480
- Vertical Frequency:
- 60Hz
- Flip scan:
- YES
- Brightness:
- 300cd/m²
- Contrast Ratio:
- 500:1
- Response Time:
- 10/15
- Sunlight Readable:
- No
- View Angle:
- 70/70/50/70
- Color Space:
- NTSC 50%
- Backlight Type:
- WLED
- Backlight Position:
- Side entry light source
- Signal voltage:
- 3.3V
- OP Temp. Low:
- -20 °C
- High :
- 70 °C
- Backlight Life Time:
- 20,000
- Interface Type:
- Parallel RGB
- Display Color:
- 16.7M
- Horizontal:
- 211.1
- Vertical:
- 128.4
- Depth:
- 6.6/7.1
- Backlight voltage:
- 5.0/12.0/21.0V
- Specification
