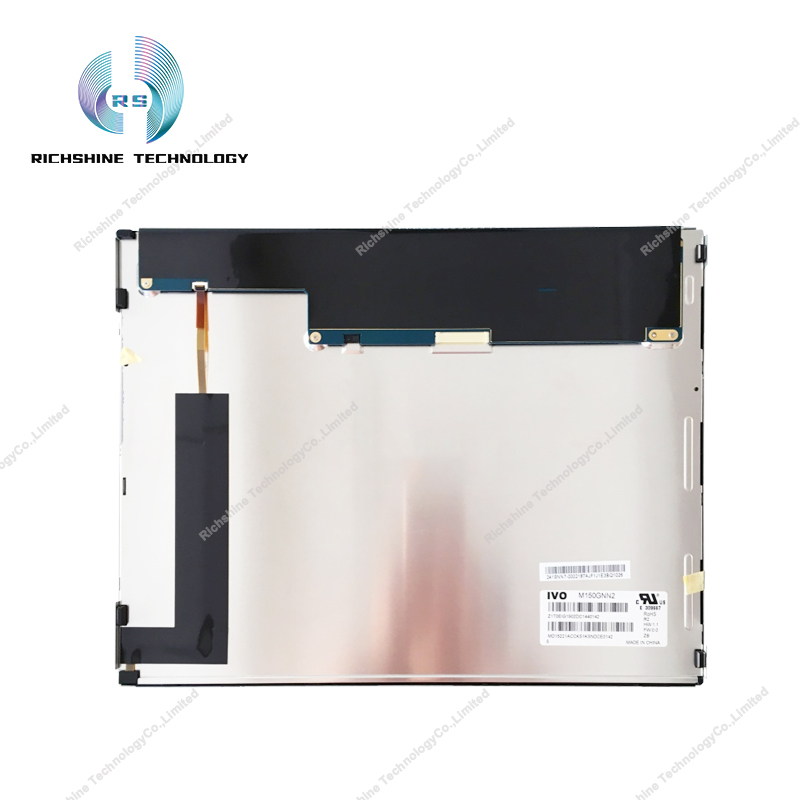

M150GNN2 R2
Panel structure :LCM
Panel Type :TFT-LCD
Touch :No
Application :Industrial
Panel size :15
Resolution :1024*768
Vertical Frequency :60Hz
Flip scan :YES
Brightness :420 cd/m²
Contrast Ratio :800:1
Response Time :16
Sunlight Readable :No
View Angle :80/80/80/80
Color Space :NTSC 70%
Backlight Type :WLED
Backlight Position :Side entry light source(Bottom)
Signal voltage :3.3V
OP Temp. Low :-20 °C
High :70 °C
Backlight Life Time :50,000
Interface Type :LVDS(6-bit)
Power Dissipation :8.8W
Display Color :262K
Horizontal :326.5
Vertical :253.5
Depth :12.0±0.5
Backlight voltage :10.8/12.0/12.6V
- Model:
- M150GNN2 R2
- Weight:
- 930.000 g
Related Model
| Model | Version | Title | |
|---|---|---|---|
| M150GNN2 R2 | Rev.00 | M150GNN2 R2 15.0 inch XGA TN |
- Product Category :
- Laptop panel
- Panel structure:
- LCM
- Panel Type:
- TFT-LCD
- Touch:
- No
- Application:
- Industrial
- Panel size:
- 15
- Resolution:
- 1024*768
- Vertical Frequency:
- 60Hz
- Flip scan:
- YES
- Brightness:
- 420 cd/m²
- Contrast Ratio:
- 800:1
- Response Time:
- 16
- Sunlight Readable:
- No
- View Angle:
- 80/80/80/80
- Color Space:
- NTSC 70%
- Backlight Type:
- WLED
- Backlight Position:
- Side entry light source(Bottom)
- Signal voltage:
- 3.3V
- OP Temp. Low:
- -20 °C
- High :
- 70 °C
- Backlight Life Time:
- 50,000
- Interface Type:
- LVDS(6-bit)
- Power Dissipation:
- 8.8W
- Display Color:
- 262K
- Horizontal:
- 326.5
- Vertical:
- 253.5
- Depth:
- 12.0±0.5
- Backlight voltage:
- 10.8/12.0/12.6V
- Specification
