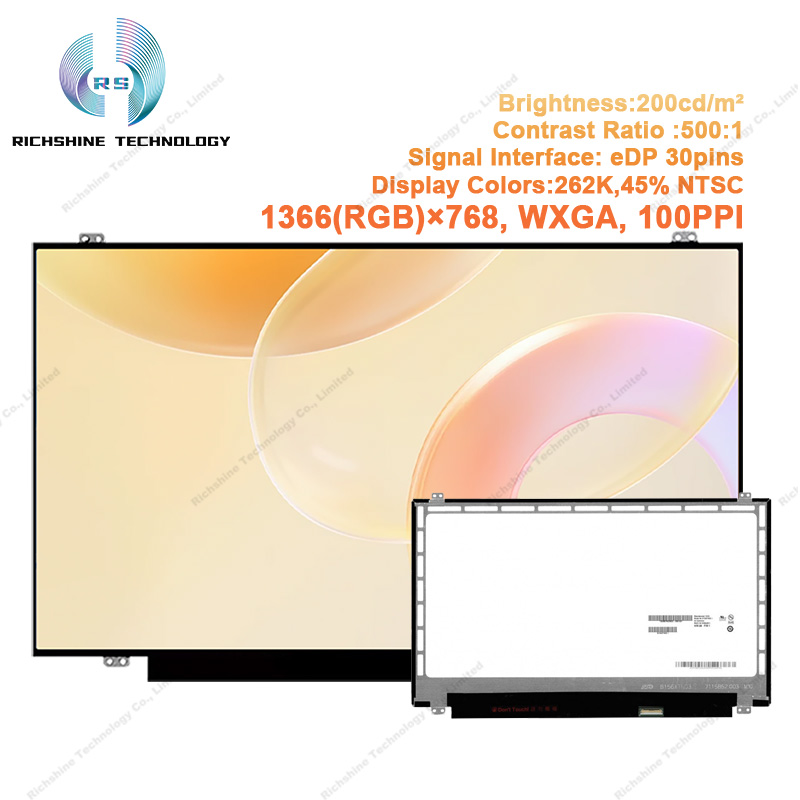

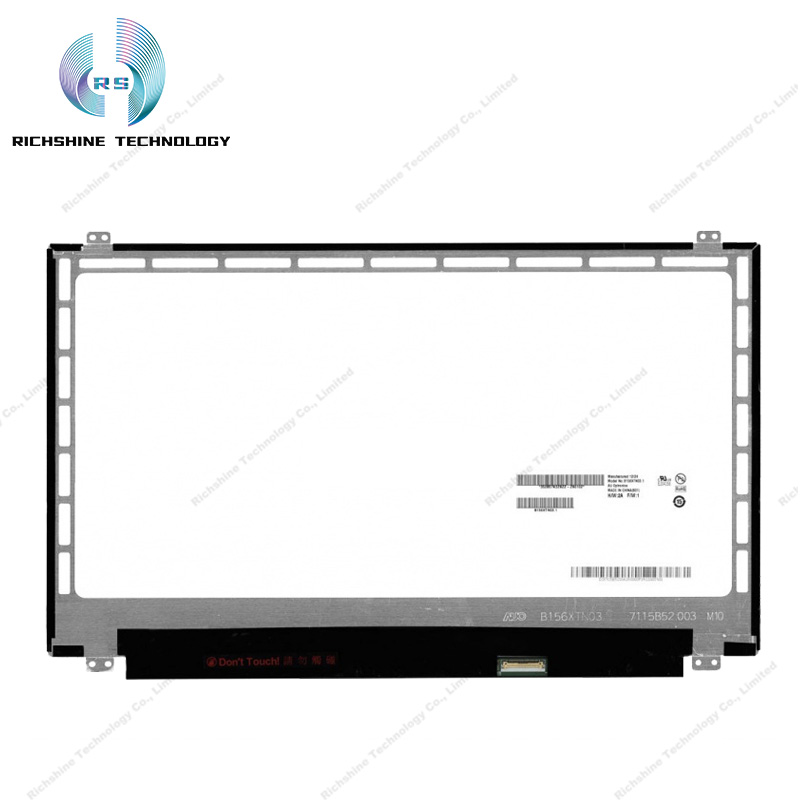

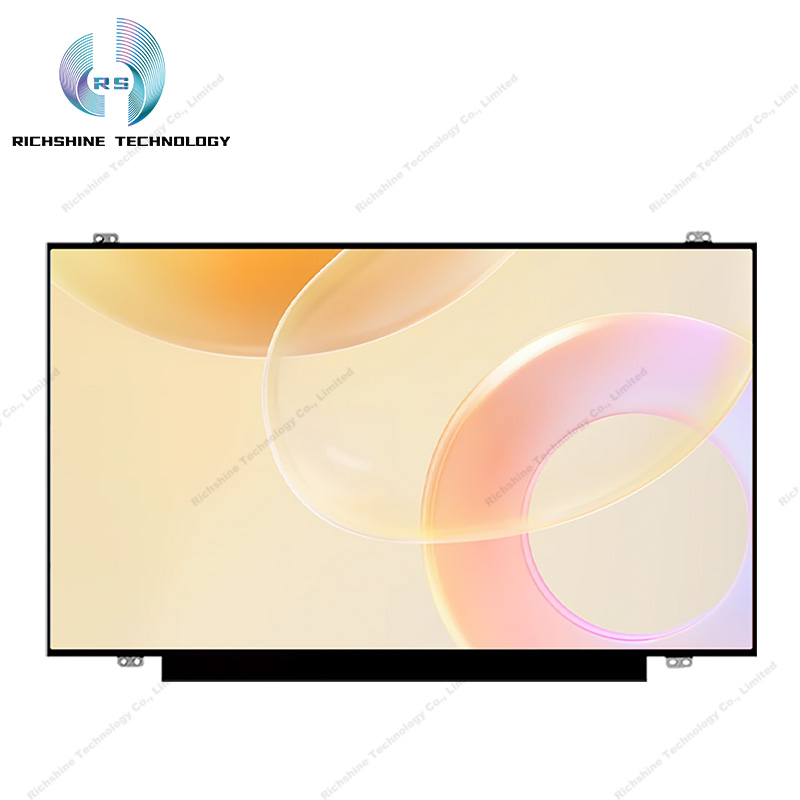

B156XTN03.1 15.6 inch WXGA TN
Brand :AUO
Panel Type :TFT-LCD
Panel structure :LCM
Touch :No
Panel size :15.6
Resolution :1366×768
Interface Type :LVDS(6-bit)
Vertical Frequency :60Hz
Flip scan :No
Signal voltage :3.3V
Brightness :200 cd/m²
Contrast Ratio :500:1
Response Time :8
Color Space :NTSC 45%
View Angle :45/45/15/35
Sunlight Readable :No
T-con board :Straight row
Backlight Type :WLED
Backlight Position :Edge light type
Backlight Life Time :15,000
Backlight voltage :6.0/12.0/21.0V
OP Temp. Low :0 °C
High :50 °C
Power Dissipation :3.65W
Display Color :262K
Horizontal :359.5
Vertical :223.8
Depth :3.05/3.2
- Model:
- B156XTN03.1
- Manufacturer:
- AUO
- Specification
- View & Download
Related Model
| Model | Version | Title | |
|---|---|---|---|
| B156XTN03.1 | 2A | B156XTN03.1 15.6 inch WXGA TN | View & Download |
- Manufacturer :
- AUO
- Product Category :
- Other
- Brand:
- AUO
- Panel Type:
- TFT-LCD
- Panel structure:
- LCM
- Touch:
- No
- Panel size:
- 15.6
- Resolution:
- 1366×768
- Interface Type:
- LVDS(6-bit)
- Vertical Frequency:
- 60Hz
- Flip scan:
- No
- Signal voltage:
- 3.3V
- Brightness:
- 200 cd/m²
- Contrast Ratio:
- 500:1
- Response Time:
- 8
- Color Space:
- NTSC 45%
- View Angle:
- 45/45/15/35
- Sunlight Readable:
- No
- T-con board:
- Straight row
- Backlight Type:
- WLED
- Backlight Position:
- Edge light type
- Backlight Life Time:
- 15,000
- Backlight voltage:
- 6.0/12.0/21.0V
- OP Temp. Low:
- 0 °C
- High :
- 50 °C
- Power Dissipation:
- 3.65W
- Display Color:
- 262K
- Horizontal:
- 359.5
- Vertical:
- 223.8
- Depth:
- 3.05/3.2
