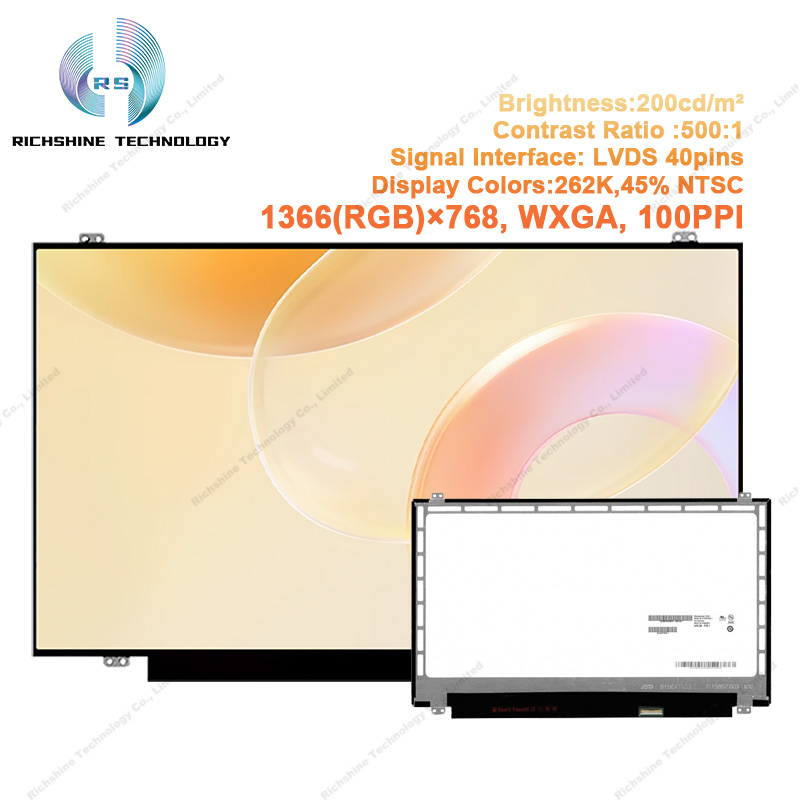

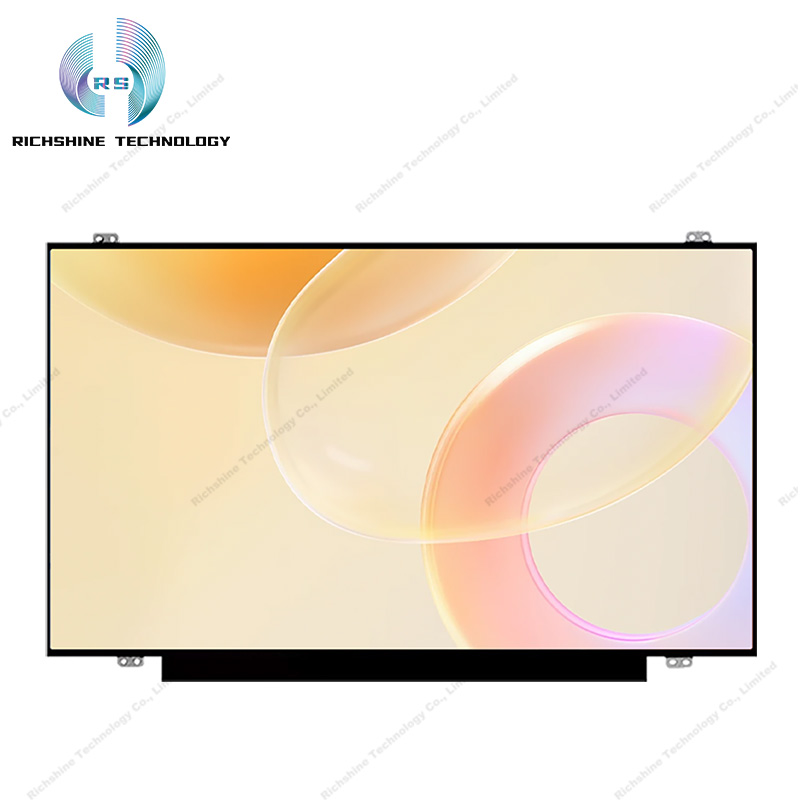

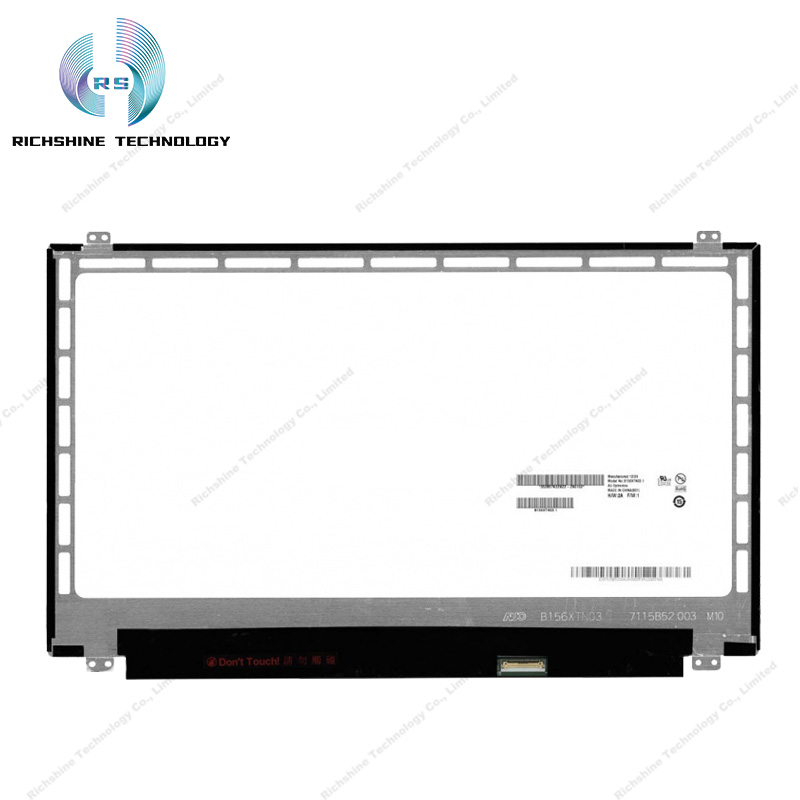

B156XTN03.2 15.6 inch WXGA TN
Brand :AUO
Panel Type :TFT-LCD
Panel structure :LCM
Touch :No
Panel size :15.6
Resolution :1366×768

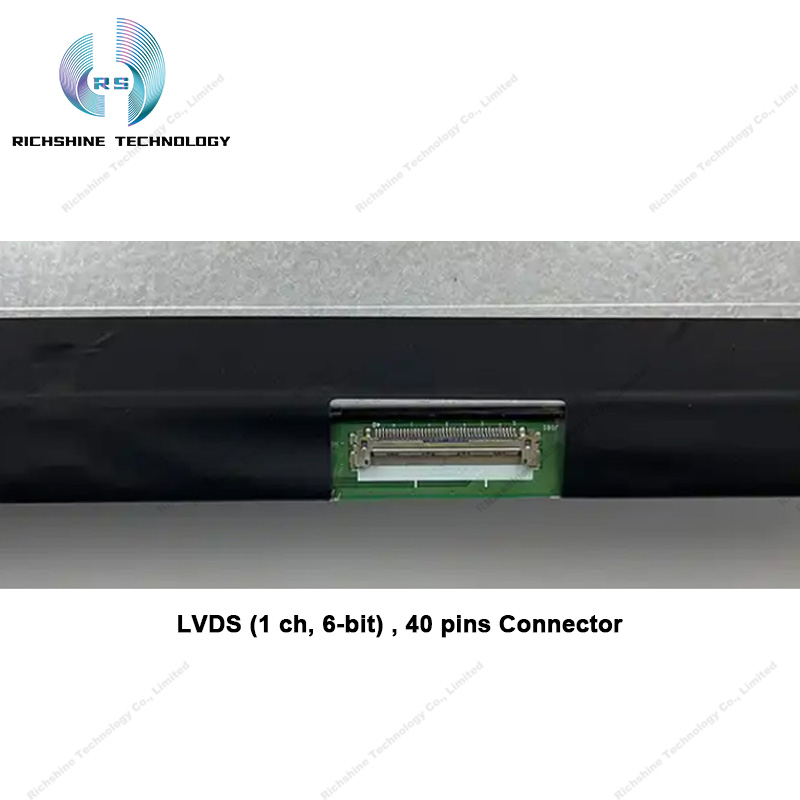

Interface Type :LVDS(6-bit)
Vertical Frequency :60Hz
Flip scan :No
Signal voltage :3.3V
Brightness :200 cd/m²
Contrast Ratio :500:1
Response Time :2/6
Color Space :NTSC 45%
View Angle :45/45/15/35
Sunlight Readable :No
T-con board :Straight row
Backlight Type :WLED
Backlight Position :Edge light type
Backlight Life Time :15,000
Backlight voltage :6.0/12.0/21.0V
OP Temp. Low :0 °C
High :50 °C
Power Dissipation :3.6W
Display Color :262K
Horizontal :359.5
Vertical :223.8
Depth :3.05/3.2
- Model:
- B156XTN03.2
- Manufacturer:
- AUO
- Specification
- View & Download
Related Model
| Model | Version | Title | |
|---|---|---|---|
| B156XTN03.2 | 0A | B156XTN03.2 15.6 inch WXGA TN | View & Download |
