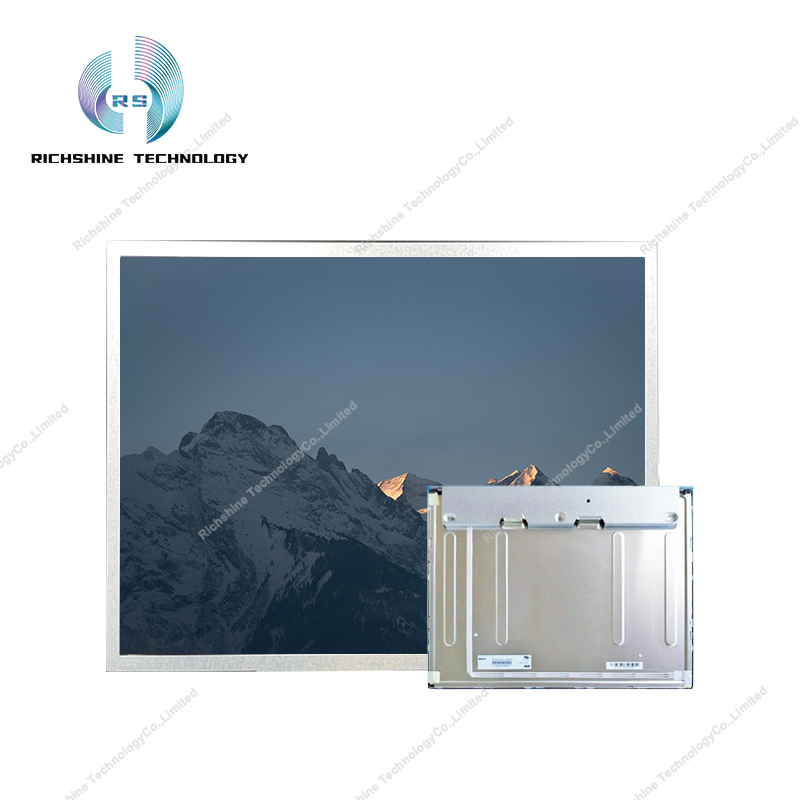

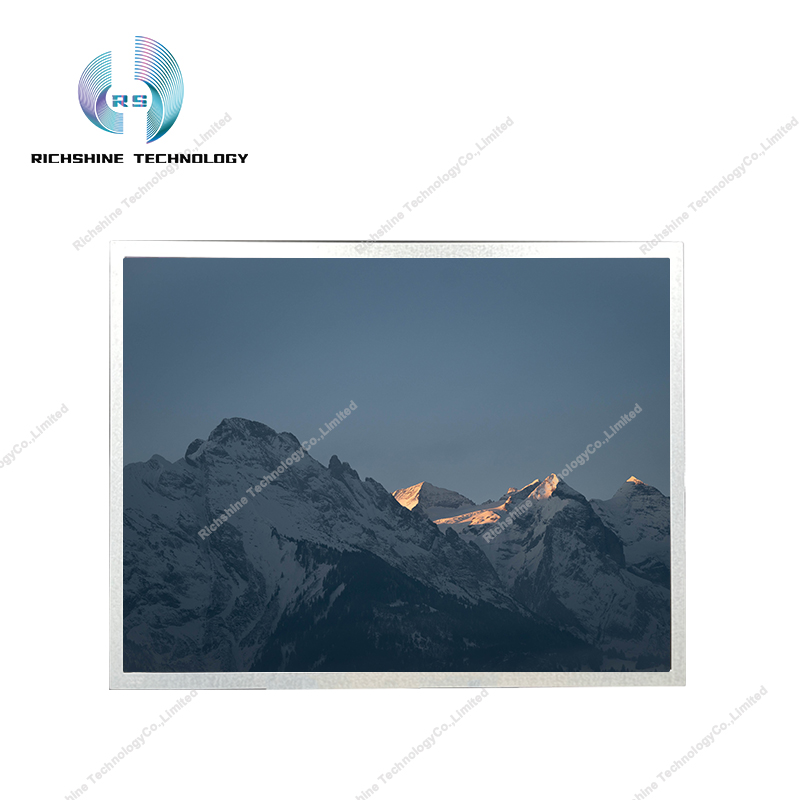

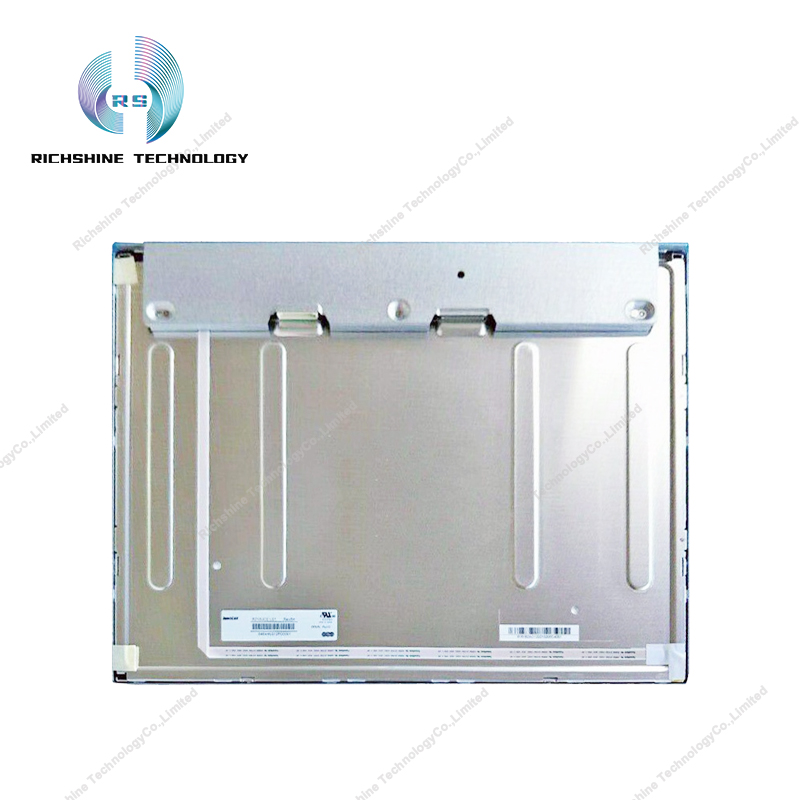

R213UCE-L01 21.3 inch UXGA IPS
Panel Type :TFT-LCD
Panel structure :LCM
Touch :No
Brand :Innolux
Panel size :21.3
Resolution :1600*1200
Vertical Frequency :60Hz
Flip scan :No
Signal voltage :12V
Contrast Ratio :1800:1
View Angle :89/89/89/89
Sunlight Readable :YES
Backlight Position :Edge light type
Backlight Type :WLED
T-con board :Dorsal fold
Backlight Life Time :50,000
Backlight voltage :12.0±1.2V
Power Dissipation :27.4/29.7W
Response Time :8/8
Color Space :NTSC 72%
Display Color :16.7M
Brightness :500 cd/m²
Interface Type :LVDS
Application :Healthcare/Medical Imaging
OP Temp. Low :0 °C
High :50 °C
Horizontal :457
Vertical :350
Depth :19.79
- Model:
- R213UCE-L01
- Manufacturer:
- Innolux
- Weight:
- 2170.000 g
Related Model
| Model | Version | Title | |
|---|---|---|---|
| R213UCE-L01 | Ver3.3 | R213UCE-L01 21.3 inch UXGA IPS |
- Manufacturer :
- Innolux
- Product Category :
- MNT/PD Panel
- Panel Type:
- TFT-LCD
- Panel structure:
- LCM
- Touch:
- No
- Brand:
- Innolux
- Panel size:
- 21.3
- Resolution:
- 1600*1200
- Vertical Frequency:
- 60Hz
- Flip scan:
- No
- Signal voltage:
- 12V
- Contrast Ratio:
- 1800:1
- View Angle:
- 89/89/89/89
- Sunlight Readable:
- YES
- Backlight Position:
- Edge light type
- Backlight Type:
- WLED
- T-con board:
- Dorsal fold
- Backlight Life Time:
- 50,000
- Backlight voltage:
- 12.0±1.2V
- Power Dissipation:
- 27.4/29.7W
- Response Time:
- 8/8
- Color Space:
- NTSC 72%
- Display Color:
- 16.7M
- Brightness:
- 500 cd/m²
- Interface Type:
- LVDS
- Application:
- Healthcare/Medical Imaging
- OP Temp. Low:
- 0 °C
- High :
- 50 °C
- Horizontal:
- 457
- Vertical:
- 350
- Depth:
- 19.79
