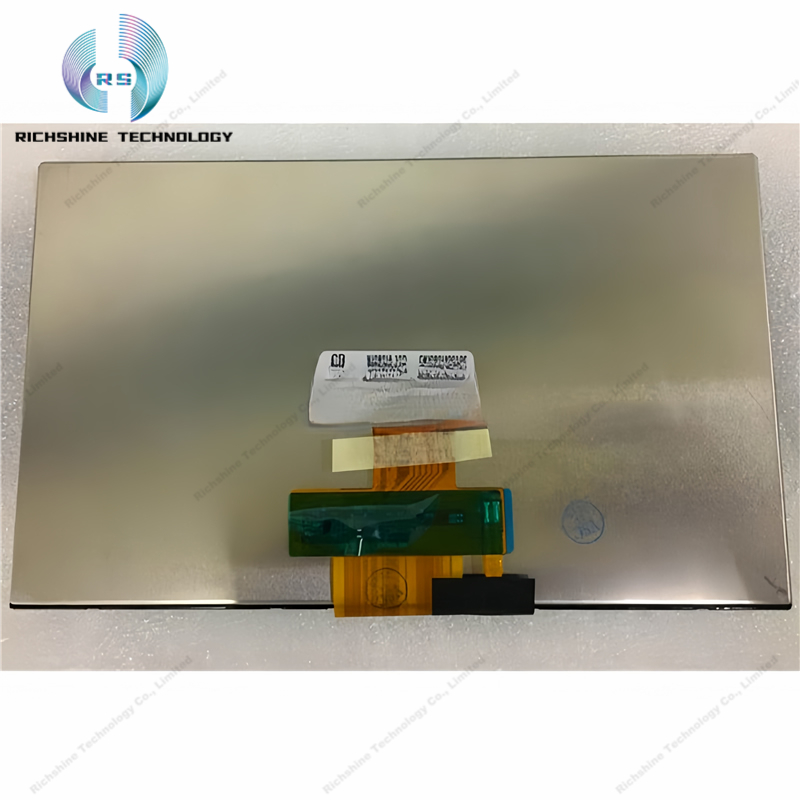

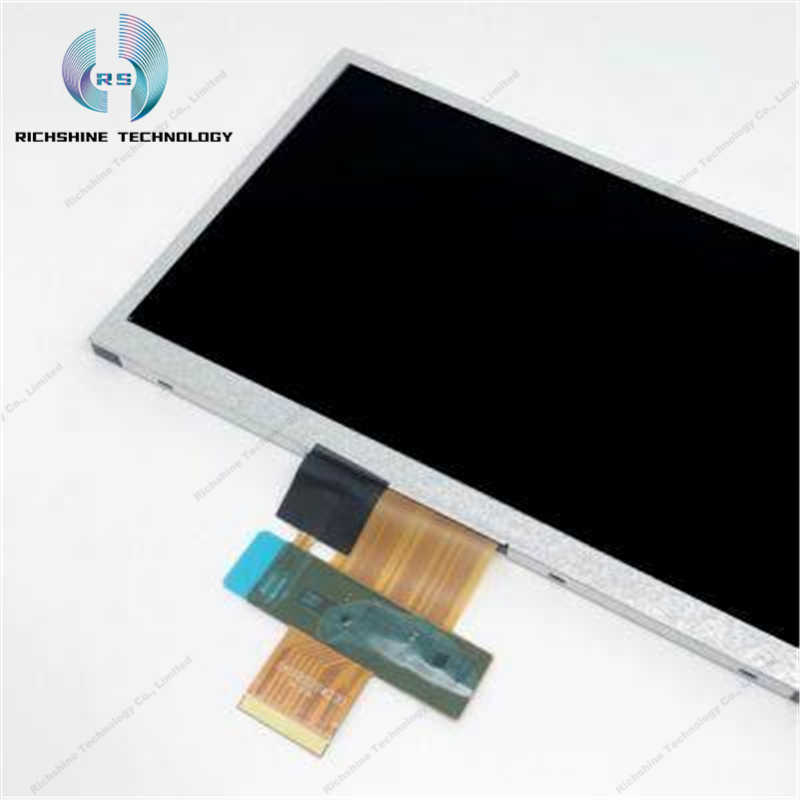

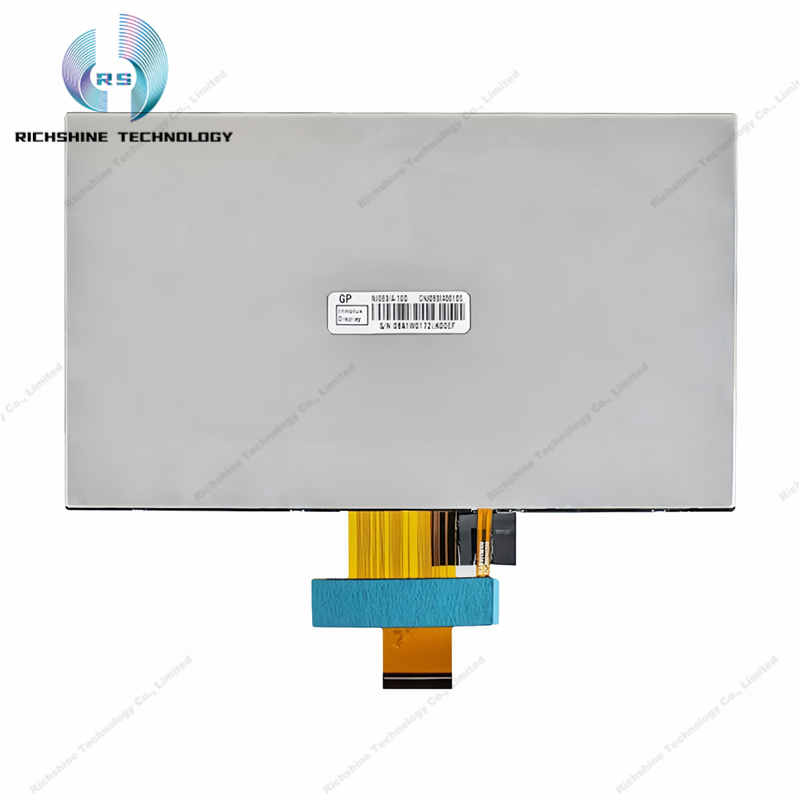

NJ080IA-10D 8 inch WSVGA IPS

Panel Type :TFT-LCD
Panel structure :LCM
Touch :No
Brand :Innolux
Application :Automotive Display
Panel size :8
Resolution :1024×600
Flip scan :Flip (horizontal/vertical)
Vertical Frequency :60Hz
Contrast Ratio :1000:1
Brightness :500 cd/m²
Response Time :25
Backlight Type :WLED
View Angle :85/85/85/85
Sunlight Readable :YES
Interface Type :LVDS
Backlight Position :Edge light type
Color Space :NTSC 70%
Backlight Life Time :20,000
OP Temp. Low :-20 °C
High :70 °C
Backlight voltage :9.3±0.3V
Signal voltage :3.3/13/24/-5.6V
Power Dissipation :634mW
Display Color :16.7M
Horizontal :192.8
Vertical :116.9
Depth :6.7
Model:
NJ080IA-10D
Manufacturer:
Innolux
Weight:
184.000 g

Related Model

Model Version Title PDF
NJ080IA-10D Final Ver.07 NJ080IA-10D 8 inch WSVGA IPS
Manufacturer :
Innolux
Product Category :
Laptop panel
Panel Type:
TFT-LCD
Panel structure:
LCM
Touch:
No
Brand:
Innolux
Application:
Automotive Display
Panel size:
8
Resolution:
1024×600
Flip scan:
Flip (horizontal/vertical)
Vertical Frequency:
60Hz
Contrast Ratio:
1000:1
Brightness:
500 cd/m²
Response Time:
25
Backlight Type:
WLED
View Angle:
85/85/85/85
Sunlight Readable:
YES
Interface Type:
LVDS
Backlight Position:
Edge light type
Color Space:
NTSC 70%
Backlight Life Time:
20,000
OP Temp. Low:
-20 °C
High :
70 °C
Backlight voltage:
9.3±0.3V
Signal voltage:
3.3/13/24/-5.6V
Power Dissipation:
634mW
Display Color:
16.7M
Horizontal:
192.8
Vertical:
116.9
Depth:
6.7
