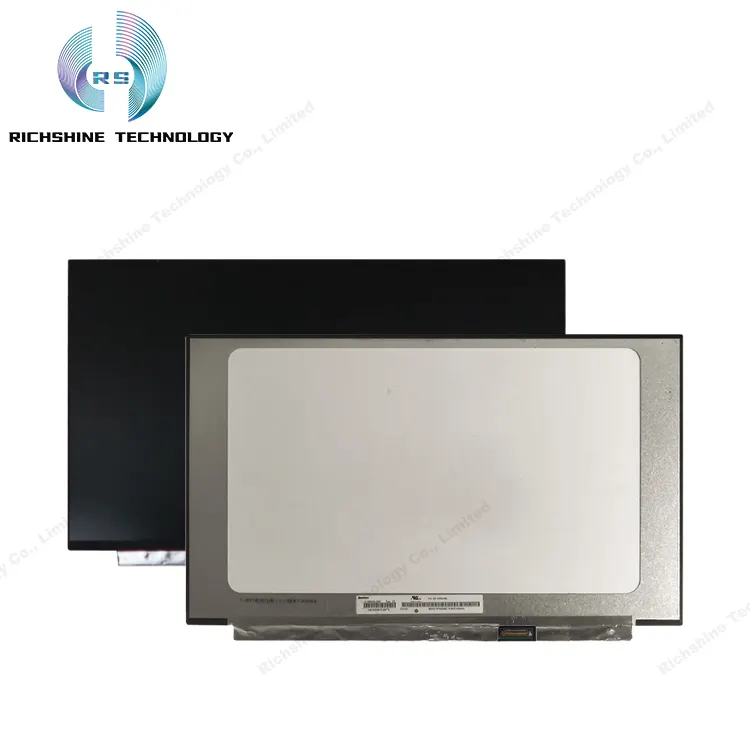

N156BGA-EA3 15.6 inch WXGA TN
Panel Type :TFT-LCD
Resolution :1366×768
Color Space :NTSC 45%
Panel structure :LCM
OP Temp. Low :0 °C
Backlight voltage :5/12/21V
Backlight Life Time :15,000
Backlight Position :Edge light type
T-con board :Straight row
Response Time :3/7
Contrast Ratio :500:1
Brightness :220 cd/m²
Power Dissipation :3.18W
Flip scan :No
Vertical Frequency :60Hz
Interface Type :eDP eDP (1 Lane) eDP1.2
Panel size :15.6
Application :Laptop computer
Brand :Innolux
Touch :No
Vertical :223.8
Display Color :262K
Depth :3.2
Signal voltage :3.3V
Horizontal :350.73
Backlight Type :WLED
Sunlight Readable :No
View Angle :45/45/20/45
High :50 °C
- Model:
- N156BGA-EA3
- Manufacturer:
- Innolux
- Weight:
- 345.000 g
- Specification
- View & Download
Related Model
| Model | Version | Title | |
|---|---|---|---|
| N156BGA-EA3 | Ver 1.0 | N156BGA-EA3 | View & Download |
| N156BGA-EA3 | Rev.C1 | N156BGA-EA3 15.6 inch WXGA TN | View & Download |
- Manufacturer :
- Innolux
- Product Category :
- Laptop panel
- Panel Type:
- TFT-LCD
- Resolution:
- 1366×768
- Color Space:
- NTSC 45%
- Panel structure:
- LCM
- OP Temp. Low:
- 0 °C
- Backlight voltage:
- 5/12/21V
- Backlight Life Time:
- 15,000
- Backlight Position:
- Edge light type
- T-con board:
- Straight row
- Response Time:
- 3/7
- Contrast Ratio:
- 500:1
- Brightness:
- 220 cd/m²
- Power Dissipation:
- 3.18W
- Flip scan:
- No
- Vertical Frequency:
- 60Hz
- Interface Type:
- eDP eDP (1 Lane) eDP1.2
- Panel size:
- 15.6
- Application:
- Laptop computer
- Brand:
- Innolux
- Touch:
- No
- Vertical:
- 223.8
- Display Color:
- 262K
- Depth:
- 3.2
- Signal voltage:
- 3.3V
- Horizontal:
- 350.73
- Backlight Type:
- WLED
- Sunlight Readable:
- No
- View Angle:
- 45/45/20/45
- High :
- 50 °C
- Specification
- View & Download
- Specification
