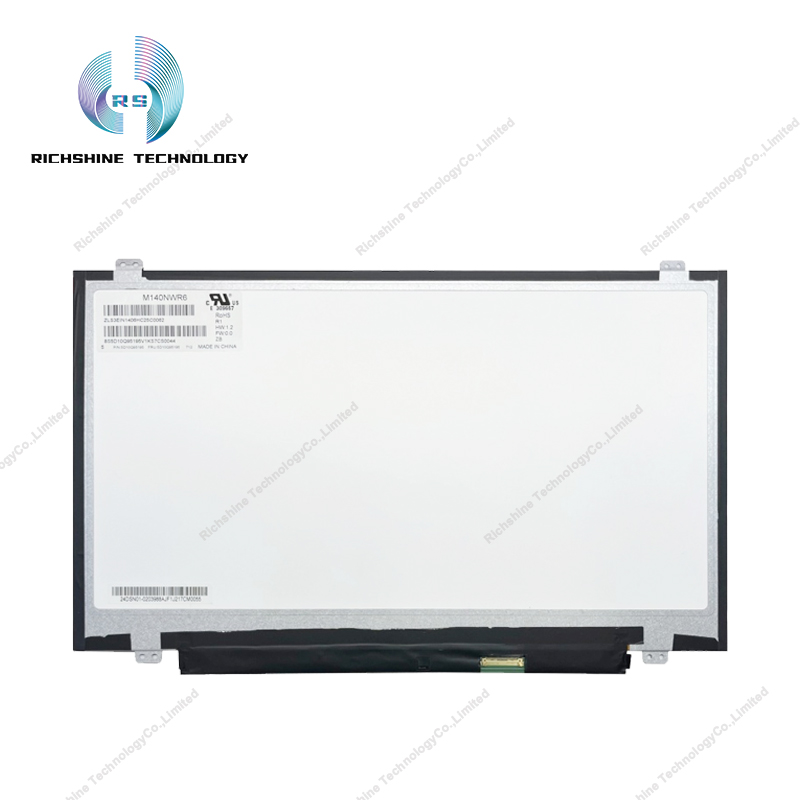

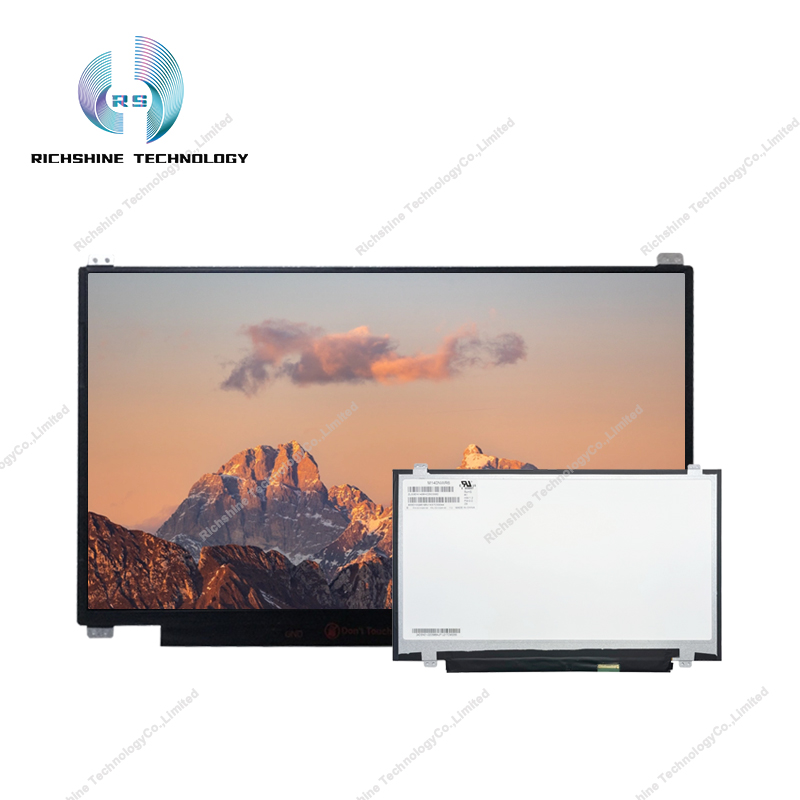

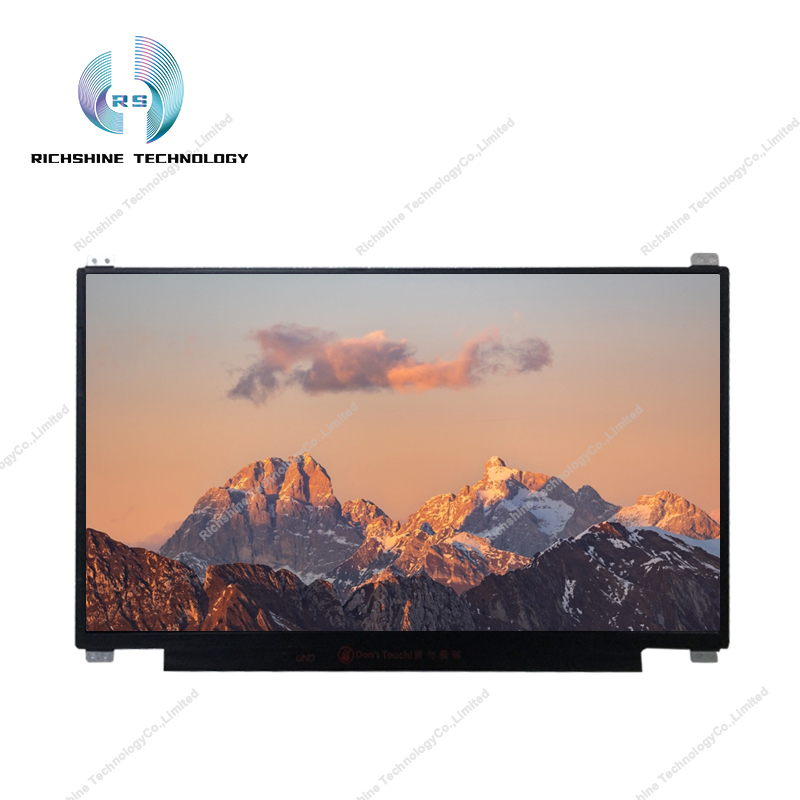

M140NWR6 R1
Touch :No
Panel Type :TFT-LCD
Panel structure :LCM
Application :Laptop computer
Panel size :14
Resolution :1366*768
Vertical Frequency :60Hz
Flip scan :No
Brightness :220 cd/m²
Contrast Ratio :500:1
Response Time :8
Sunlight Readable :No
View Angle :45/45/15/35
Color Space :NTSC 45%
T-con board :Straight row
Backlight Type :WLED
Backlight Position :Side entry light source
Signal voltage :3.3V
OP Temp. Low :0 °C
High :50 °C
Backlight Life Time :15,000
Interface Type :eDP eDP (1 Lane) eDP1.2
Power Dissipation :3.0W
Display Color :262K
Horizontal :320.4
Vertical :205.1
Depth :2.8/3.0
Backlight voltage :5.5/12.0/21.0V
- Model:
- M140NWR6 R1
- Weight:
- 285.000 g
Related Model
| Model | Version | Title | |
|---|---|---|---|
| M140NWR6 R1 | Rev.00 | M140NWR6 R1 14.0 inch WXGA TN |
- Product Category :
- Laptop panel
- Touch:
- No
- Panel Type:
- TFT-LCD
- Panel structure:
- LCM
- Application:
- Laptop computer
- Panel size:
- 14
- Resolution:
- 1366*768
- Vertical Frequency:
- 60Hz
- Flip scan:
- No
- Brightness:
- 220 cd/m²
- Contrast Ratio:
- 500:1
- Response Time:
- 8
- Sunlight Readable:
- No
- View Angle:
- 45/45/15/35
- Color Space:
- NTSC 45%
- T-con board:
- Straight row
- Backlight Type:
- WLED
- Backlight Position:
- Side entry light source
- Signal voltage:
- 3.3V
- OP Temp. Low:
- 0 °C
- High :
- 50 °C
- Backlight Life Time:
- 15,000
- Interface Type:
- eDP eDP (1 Lane) eDP1.2
- Power Dissipation:
- 3.0W
- Display Color:
- 262K
- Horizontal:
- 320.4
- Vertical:
- 205.1
- Depth:
- 2.8/3.0
- Backlight voltage:
- 5.5/12.0/21.0V
- Specification
