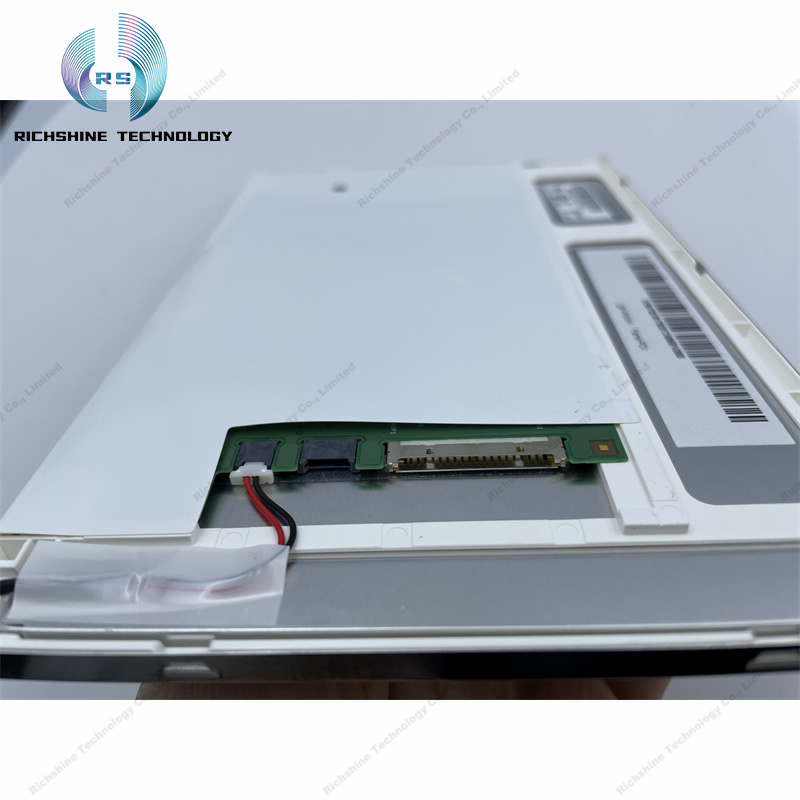

G070VW01 V002
Panel Type :TFT-LCD
Panel structure :LCM
Touch :No
Application :Industrial
Resolution :800*480
Interface Type :LVDS(8bit)
Panel size :7
Vertical Frequency :60Hz
Flip scan :YES
Signal voltage :3.3V
Brightness :400 cd/m²
Contrast Ratio :750:1
Response Time :20/10
Color Space :NTSC 60%
View Angle :80/80/80/80
Sunlight Readable :No
T-con board :Dorsal fold
Backlight Position :Side entry light source
Backlight Type :WLED
Backlight Life Time :50,000
Backlight voltage :10.8/12.0/12.6V
OP Temp. Low :-30 °C
High :85 °C
Power Dissipation :2.52W
Display Color :262K/16.2M
Horizontal :170
Vertical :111
Depth :7.5±0.5
- Model:
- G070VW01 V002
- Weight:
- 165.000 g
Related Model
| Model | Version | Title | |
|---|---|---|---|
| G070VW01 V002 | Ver1.1 | G070VW01 V002 7 inch WVGA TN |
- Product Category :
- GD Panel
- Panel Type:
- TFT-LCD
- Panel structure:
- LCM
- Touch:
- No
- Application:
- Industrial
- Resolution:
- 800*480
- Interface Type:
- LVDS(8bit)
- Panel size:
- 7
- Vertical Frequency:
- 60Hz
- Flip scan:
- YES
- Signal voltage:
- 3.3V
- Brightness:
- 400 cd/m²
- Contrast Ratio:
- 750:1
- Response Time:
- 20/10
- Color Space:
- NTSC 60%
- View Angle:
- 80/80/80/80
- Sunlight Readable:
- No
- T-con board:
- Dorsal fold
- Backlight Position:
- Side entry light source
- Backlight Type:
- WLED
- Backlight Life Time:
- 50,000
- Backlight voltage:
- 10.8/12.0/12.6V
- OP Temp. Low:
- -30 °C
- High :
- 85 °C
- Power Dissipation:
- 2.52W
- Display Color:
- 262K/16.2M
- Horizontal:
- 170
- Vertical:
- 111
- Depth:
- 7.5±0.5
- Specification
